Product Details:
|
| Product Name: | MF52 NTC Type Thermistor | Resistance Value: | 1KΩ/2KΩ/2.252KΩ/2.89KΩ/4.7KΩ |
|---|---|---|---|
| B-Value 25/50: | 3470/3950±1% | Accuracy: | ±1% 、2%、3%、 5% |
| Size: | 2mm-3mm | Insulation Resistance: | ≥100 |
| Resistance Range: | 1KΩ To 300KΩ | Thermal Dissipation Constant: | ≥2 |
| Response Time: | 1s To 10s | Operating Temperature Range: | -40~120℃ |
| Dissipation Constant: | ≤2mW/K | Insulation Resistance: | >100MΩ |
| Operating Temperature Range: | -40℃ To +125℃ | Resistance Tolerance: | ±1% |
| Storage Temperature Range: | -40℃ To +125℃ | Thermal Time Constant: | ≤7s |
| Highlight: | High Precision Detection NTC Thermistor,Low Resistance NTC Thermistor |
||
MF52/MF5A Main technical parameters of temperature-measuring thermoelectric resistance
Features
Rohs compliant
small size, fast response
excellent thermal cycle endurance
superior solderadility and resistance to soldering heat shock
moisture resistant
wide resistance range
high stability steady
good quality of coherence and interchange
-40 ~125 ℃ operating temperature range
Application:
1. Air-condition Equipment
2. Heating Apparatus
3. Electric Thermometer
4. Liquid Level Sensor
5. Automotive electronics
6. Electronic calendar
7. Battery of Mobile Telephone
Parameters
| envelope material | epoxide, silicone or bakelite |
| resistance at 25 ℃ | from 1Kohm to 330Kohm |
| tolerance of resistance | ± 1%, ± 2%, ± 3%, ± 5%, ± 10% |
| B(25/50) | from 3100K to 4300K |
| tolerance of B value | ± 1%, ± 2%, ± 3%, ± 5% |
| head color |
black |
1. Overall dimensions
|
| Dmax | L1max | L2 ± 3 | F d ± 0.05 | F ± 0.5 |
| 2.6 | 4.5 | 30 | 0.35 | 2.0 |
2. Materials
| Encapsulating material | colour | Lead material |
| modified resin | black | Tinned steel wire |
3. Model description
| MF52 | A1 | 103 | F | 3950 | ||
| Bead temperature measuring NTC thermistor |
Lead tinned steel wire |
Resistance value | Resistance tolerance | B value (25/50) | ||
| 10K | Ω | ±1% | 3950K | |||
4. Electrical performance
| project | symbol | test condition | unit | performance requirement | |
|
4.1 |
Zero power resistance at 25℃ |
R25 |
Ta=25±0.05℃ Test power ≤0.1mW in flowing liquid. |
KΩ |
10±1% |
|
4.2 |
B value |
25/50 |
B=[(T a ´Tb )∕(Tb -T a )]× ln( Ra ∕ Rb ) Tb = 50 ℃±0.1℃ |
K |
3950±1% |
| 4.3 | dissipation factor | d | In still air | mW∕℃ | ≥2 |
| 4.4 | characteristic time | t | In still air | sec | ≤7 |
| 4.5 | insulance | ∕ | 100V∕DC1min | MΩ | ≥100 |
| 4.6 | operating temperature range | ∕ | ∕ | ℃ | -40~120 |
| 4.7 | Resistance-temperature characteristic | ∕ | ∕ | ∕ | |
| 4.8 | Resistance error | ∕ | ∕ | ∕ |
5. Reliability performance test
| project | Test conditions and methods | technical requirement |
|
5.1 |
soldering resistance |
Immerse the lead in the tin solution at 235+/-5℃, with the tin surface 6mm away from the lower end of the body for 2-3 seconds. | The solder is evenly and smoothly coated on the surface of the immersed part of the lead, and the area is over 95%. |
|
5.2 |
Welding heat resistance |
Immerse the lead in tin liquid at 265℃ 5, with the liquid level 6mm away from the resistor, and the time is 5 1 second. |
No visible damage, R25 D R∕R≤±2% |
|
5.3 |
Lead-out strength |
Tension: 5N, time: 10s- |
No visible damage, R25 D R∕R≤±2% |
|
5.4 |
Rapid temperature change |
55℃30min→25℃min→125℃30min→ 25℃min, repeated 5 times, and recovered for 4 hours. |
No visible damage, R25 D R∕R≤±2% |
|
5.5 |
high-temperature |
Temperature: 125℃, time: 16 hours. |
No visible damage, R25 D R∕R≤±2% |
|
5.6 |
cold |
Temperature: -55℃, time: 2 hours. |
No visible damage, R25 D R∕R≤±2% |
|
5.7 |
low pressure |
Air pressure: 40 0.1kpa for 4 hours. |
No visible damage, R25 D R∕R≤±2% |
|
5.8 |
Steady state warming |
Temperature: 40℃, humidity: 93%, time: 500 12 hours. |
No visible damage, R25 D R∕R≤±2%, Withstand voltage ≥700V∕AC1min insulation resistance ≥ 100 kω. |
|
5.9 |
Alternating damp heat |
Temperature: 25~40℃, humidity: 90%, time: 24 hours. |
No visible damage, R25 D R∕R≤±2%, Withstand voltage ≥700V∕AC1min insulation resistance ≥ 100 kω. |
|
5.10 |
Endurance of zero power consumption at upper limit temperature Persistence |
Temperature: 125℃ 2℃ Time: 1000 24 hours. |
No visible damage, R25 D R∕R≤±2% |
|
5.11 |
vibrate |
Frequency range: 10~500HZ, amplitude: 0.75mm or 98m∕S 2 time 2 hours, |
No visible damage, R25 D R∕R≤±2% |
|
5.12 |
collide |
Acceleration: 250m ∕ S 2, pulse duration: 6Ms, 4000 collisions. |
No visible damage, R25 D R∕R≤±2% |
6, welding conditions
When welding, the welding place should be 6mm away from the root of the resistor, the welding temperature should be lower than 350℃, and the welding time should be as short as possible.
7. Storage conditions
Company Simple Introduction:
20 years experience on PTC/NTC thermistor field
Mainly market are Europe, North America, Asia
Competitive price
On time handle over
Competitive price
Inquiry answered in 24hrs
Good team waiting here to serve for you
RoHS &UL compatible
OEM & ODM business accept
MF5A-103F /503F/104F R25=(50K) B25/50=3950±1% High-precision small-volume negative temperature coefficient thermistor powder preparation to NTC chip coating full-set manufacturer Dongguan Linkun Electronic Technology Co., Ltd.
NTC (Negative Temperature Coefficient) thermistor is a resistor with high temperature coefficient and is also a semiconductor element that is extremely sensitive to temperature. It is made of metal oxides such as manganese, cobalt, nickel, and copper, and is manufactured by ceramic technology. It is formed, because its conduction method is completely similar to semiconductor materials such as germanium and silicon. When the temperature is low, the number of carriers (electrons and holes) in these oxide materials is small, so the resistance value is high. As the temperature rises, the carrier As the number of carriers increases, the resistance value decreases.
MF5A small leather wire thermistor features:
• NTC temperature sensor is small in size and fast in response
• NTC leads are insulated, and the wires are soft and can be bent moderately
•Thermistor resistance value B has high precision and accurate temperature measurement
• NTC chip products are lead-free and comply with the EU ROHS directive
Application scope of thermistor and NTC temperature sensor:
• , vacuum gauge, temperature and humidity gauge, beauty equipment, power supply, electronic toys
• Cell phone batteries, NB batteries, electric vehicle batteries, medical instruments for gas analyzers
• Solar water heaters, refrigerators, cars, copiers, fax machines
• Electronic thermometer, electronic stove, electric cooker, electric thermos
• Clothes dryer, electric iron, gas water heater, electric blanket, air conditioner
• 3C home appliances, petroleum heaters, microwave ovens
MF5A small leather wire thermistor series main technical parameters:
| Model | Rated resistance value(R25) | B value |
Work temperature |
Dissipation coefficient(mW/℃) |
thermal time constant (S) |
|
| Resistance(KΩ) | Allowable deviation(± %) |
nominal value (K) |
||||
| MF5A-102-3435 | 1 |
±1% ±2% ±3% ±5% |
3435 |
-40℃ ~ +120℃ |
≥3.0 静止空气中 |
≤6 静止空气中 |
| MF5A-202-3435 | 2 | 3435 | ||||
| MF5A-2.252-3950 | 2.252 | 3950 | ||||
| MF5A-472-3950 | 4.7 | 3950 | ||||
| MF5A-502-3470 | 5 | 3470 | ||||
| MF5A-502-3950 | 5 | 3950 | ||||
| MF5A-682-3950 | 6.8 | 3950 | ||||
| MF5A-103-3435 | 10 | 3435 | ||||
| MF5A-103-3470 | 10 | 3470 | ||||
| MF5A-103-3600 | 10 | 3600 | ||||
| MF5A-103-3380 | 10 | 3380 | ||||
| MF5A-103-3977 | 10 | 3977 | ||||
| MF5A-103-4100 | 10 | 4100 | ||||
| MF5A-153-3950 | 15 | 3950 | ||||
| MF5A-203-3950 | 20 | 3950 | ||||
| MF5A-233-3950 | 23 | 3950 | ||||
| MF5A-303-3950 | 30 | 3950 | ||||
| MF5A-333-3977 | 33 | 3977 | ||||
| MF5A-40.27-3950 | 40.27 | 3950 | ||||
| MF5A-473-4013 | 47 | 3950 | ||||
| MF5A-503-3977 | 50 | 3977 | ||||
| MF5A-503-3990 | 50 | 3990 | ||||
| MF5A-503-4050 | 50 | 4050 | ||||
| MF5A-104-3950 | 100 | 3950 | ||||
| MF5A-104-3990 | 100 | 3990 | ||||
| MF5A-104-4200 | 100 | 4200 | ||||
| MF5A-204-3892 | 200 | 3892 | ||||
| MF5A-204-3917 | 200 | 3917 | ||||
Precautions for the use of small leather wire thermistors:
Be sure to use within the specified temperature range to avoid deterioration of the material and characteristics.
Thermistors are designed based on transformers used in general (indoors at room temperature, humidity, and pressure). Therefore, if they are used in the following environments, they will fail (or burn out) when the characteristics are worst. ), please do not use in such an environment.
① Corrosive reducing gases (Cl2, HXS, NH3, SOX, NOX, etc.).
② Among volatile and flammable gases.
③ Places with a lot of dust.
④ A place where pressure has been reduced or increased.
⑤ Places in direct contact with water or places that are prone to condensation due to high humidity.
⑥ Place in salt water, oil, liquid medicine, organic solution.
⑦ Places with excessive vibration.
⑧ Other places similar to ①—⑦.
A:(Tin. nickle Cu or Cp wire)
Normal dimension table
| Code | Dmax | L1max | L2min |
d ±0.05 |
F ±0.5 |
| A1 | 2.5 | 4 | 25 | 0.3 | 1.7 |
| A2 | 3 | 4.5 | 25 | 0.45 | 2.2 |
B:(Enamelled cu wire)
Normal dimension table
| Code | Dmax | L1max | L2min | L3 ±1 | d±0.05 |
| B1 | 2 | 3.5 | by user determine | 3 | 0.2 |
| B2 | 3 | 4 | by user determine | 3 | 0.3 |
C:(High-temperature wire)
Normal dimension table
| Code | Dmax | L1max | L2min | L3 ±1 | Wire AWG |
| C1 | 3 | 7.5 | by user determine | 5 | 30# |
| C2 | 4 | 7.5 | by user determine | 5 | 28# |
D:(Normal temperature wire)
Normal dimension table
| Code | Dmax | L1max | L2min | L3 ±1 | Wire AWG |
| D1 | 3 | 7.5 | by user determine | 5 | 30# |
| D2 | 4 | 7.5 | by user determine | 5 | 28# |
E:Lead and head are all special specification)
Normal dimension table
| Code | Dmax | L1max | L2min | L3 ±1 | Wire AWG |
| E1 | by user determine | by user determine | by user determine | 5 | by user determine |
| E2 | by user determine | by user determine | by user determine | 5 | by user determine |
DE:(Cp Lead Coated with epoxy resin)
Normal dimension table
| Code | Dmax | L1max | L21max | L3 | d±0.05 | F±0.05 |
| DE1 | 3 | 6.0 | 55 | By user determine | 0.3 | / |
| DE2 | 4 | 7.5 | 35 | by user determine | 0.45 | / |
F:(Tinned steel wire)
Normal dimension table
| Code | Dmax | L1max | L2±1.5 | d±0.01 | f±0.05 | T max |
| F | 3.8 | 9.5 | 17 | 0.6 | 2.5 | 3.5 |
Small leather wire thermistor abnormal handling:
When the thermistor is abnormal, short-circuit current will pass through, and there may be abnormal smell, abnormal sound, smoke, etc., please be sure to connect the thermistor in series with the current protection as another protection device.
When the thermistor is working, depending on the site (environment) conditions, it may exceed 110°C. Please confirm whether it affects surrounding parts or materials.
Abnormalities in thermistors not only affect parts or materials and cause them to deteriorate, but gas emitted from parts or materials often becomes the cause of component deterioration.
NTC Type Thermistor is a widely used temperature measuring thermistor which is specially designed for temperature measurement and compensation. It is usually made of a MF52 single-ended glass sealed thermistor or MF11 temperature compensated thermistor. It is featured by high insulation resistance (≥100MΩ), high precision (tolerance of +/-1%) and wide range of B-value (25/50: 3950±1%).
The NTC Type Thermistor is mainly used in temperature measurement, compensation and control. It is widely used in a variety of applications such as computer, consumer electronics, medical equipment, automotive, aviation and other industries. It can also be used in more demanding applications like food, aerospace and military applications. It is an ideal choice for temperature compensation and measurement.
NTC Type Thermistor has been extensively tested and certified to guarantee its superior quality. It is also well-known for its long-term stability, reliability and durability. Therefore, it is a great choice for temperature measurement and compensation.
| Property | MF5 Single-ended glass sealed thermistor | MF55 film thermistor | MF52 temperature measuring thermistor | MF6 single-ended glass sealed thermistor | MF62 temperature measuring thermistor |
|---|---|---|---|---|---|
| Tolerance | +/-1% | +/-1% | +/-1% | +/-1% | +/-1% |
| B-Value 25/50 | 3950±1% | 3950±1% | 3950±1% | 3950±1% | 3950±1% |
| Thermal Dissipation Constant | ≥2 | ≥2 | ≥2 | ≥2 | ≥2 |
| Size | 2mm To 3mm | 2mm To 3mm | 2mm To 3mm | 2mm To 3mm | 2mm To 3mm |
| Insulation Resistance | >100MΩ | >100MΩ | >100MΩ | >100MΩ | >100MΩ |
| Resistance Range | 1Ω To 100KΩ | 1Ω To 100KΩ | 1Ω To 100KΩ | 1Ω To 100KΩ | 1Ω To 100KΩ |
| Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% |
| Thermal Time Constant | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 |
| Response Time | 1s To 10s | 1s To 10s | 1s To 10s | 1s To 10s | 1s To 10s |
| Insulation Resistance | >100 | >100 | >100 | >100 | >100 |
The NTC type thermistor from Lin Kun has the model number MF52 10K 1% 3950, is ROHS and UL certified, and originates from China Dong Guan. It has a minimum order quantity of 5000 PCS, with a price of 0.045 USD/ PCS, and is packaged in bulk with 500pcs per polybag. The delivery time is 7 workdays, and the payment terms are T/T. The supply ability is 20,000,000PCS per week. It has a thermal time constant of ≤7, an insulation resistance of ≥100, and a thermal dissipation constant of ≥2. In terms of resistance range, it goes from 1Ω to 100KΩ. This thermistor is especially suitable for temperature measuring, and is specifically the MF52 single-ended glass sealed thermistor and MF58 glass sealed thermistor.
Lin Kun offers a wide selection of MF5 Single-ended glass sealed thermistor, MF52 temperature measuring thermistor and MF5 Single-ended glass sealed thermistor 10K 1% 3950, for NTC Type thermistor.
For more information, please contact us today!
NTC Type Thermistor is a temperature measuring device which comes in various sizes, ranging from 2mm to 3mm. It is specially designed to detect and measure temperature accurately with its resistance range of 1Ω to 100KΩ. The product also has a high insulation resistance of ≥100 and thermal dissipation constant ≥2 to ensure its excellent performance.
It is available in three types, namely the MF52 temperature measuring thermistor, MF55 film thermistor and MF58 glass sealed thermistor. The MF52 temperature measuring thermistor is a high-precision device that can be used to measure temperature accurately. The MF55 film thermistor has a low temperature coefficient of resistance and is suitable for high temperature applications. The MF58 glass sealed thermistor is encapsulated in glass and is suitable for temperature compensation.
NTC Type Thermistor is a reliable and durable product with excellent performance and is a great choice for temperature measuring applications. It is designed for easy installation and maintenance and is suitable for industrial and commercial applications.
| Parameter | Value |
|---|---|
| B-Value | 25/50: 3950 ±1% |
| Insulation Resistance | >100MΩ |
| Accuracy | ±1% |
| Operating Temperature | -55°C To +125°C |
| Insulation Resistance | >100MΩ |
| Response Time | 1s To 10s |
| Product Name | NTC Type Thermistor |
| Tolerance | ±1% |
| Size | 2mm To 3mm |
| Thermal Time Constant | ≤7 |
| Main Types | MF11 temperature compensated thermistor, MF55 film thermistor, MF5 Single-ended glass sealed thermistor |
Lin Kun's MF52 10K 1% 3950 NTC Type Thermistor is a high quality, reliable single-ended glass sealed thermistor. With its thermal dissipation constant of greater than 2, resistance range of 1Ω to 100KΩ, size of 2mm to 3mm and tolerance of +/-1%, it is great for a variety of applications. It is RoHS and UL certified and available in quantities of 5000pcs per polybag. With a price of 0.045 USD/PCS and delivery time of 7 workdays, it is an excellent choice for those seeking cost-effective solutions.
The MF52 10K 1% 3950 NTC Type Thermistor is ideal for temperature sensing and compensation applications, such as temperature detection, temperature compensation, temperature switch, temperature control, temperature measurement and temperature detection. It can be used in air conditioners, electric fans, electric ovens, lamps, induction cookers, water heaters, electric water heaters, refrigerators and other home appliances, as well as industrial instrumentation, automotive electronics, etc. Its B-Value of 25/50: 3950±1% makes it perfect for temperature detection and compensation.
Lin Kun's MF52 10K 1% 3950 NTC Type Thermistor is a great choice for anyone looking for a cost-effective, reliable, high quality thermistor solution. With its RoHS and UL certification, resistance range of 1Ω to 100KΩ, size of 2mm to 3mm and tolerance of +/-1%, it is ideal for a variety of temperature sensing and compensation applications. With a price of 0.045 USD/PCS and delivery time of 7 workdays, it is an excellent choice for those seeking cost-effective solutions.
MF52 10K 1% 3950 NTC Type Thermistor
Brand Name: Lin Kun
Model Number: MF52 10K 1% 3950
Place of Origin: China Dong Guan
Certification: ROHS, UL
Minimum Order Quantity: 5000 PCS
Price: 0.045 USD/ PCS
Packaging Details: Bulk, 500pcs per polybag
Delivery Time: 7 workdays
Payment Terms: T/T
Supply Ability: 20,000,000PCS per week
Tolerance: +/-1%
Accuracy: ±1%
Response Time: 1s To 10s
B-Value: 25/50: 3950±1%
Thermal time constant: ≤7

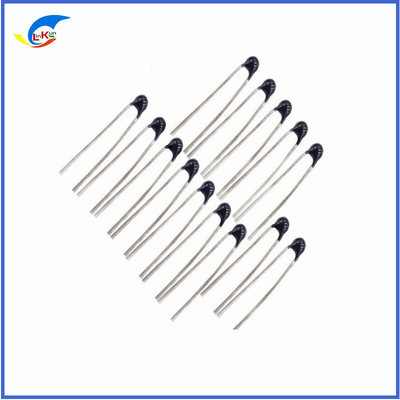

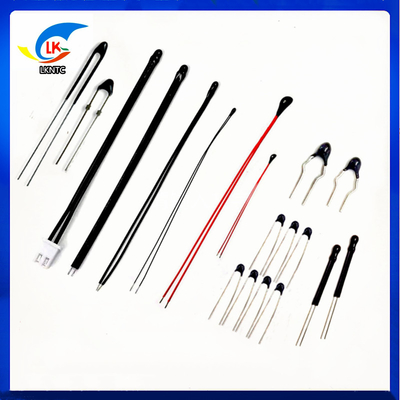

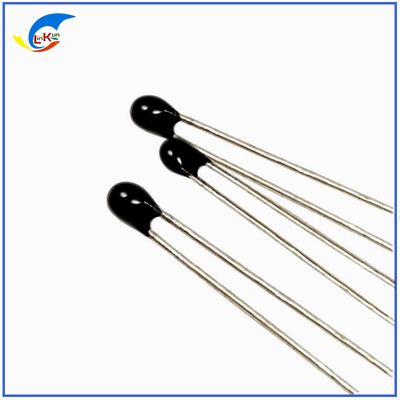

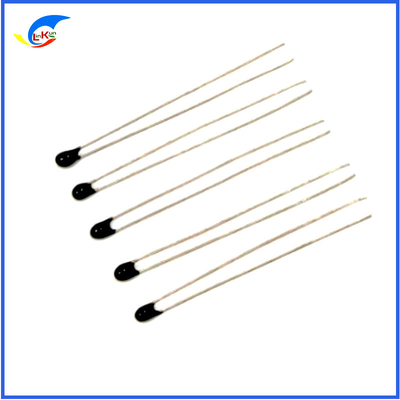

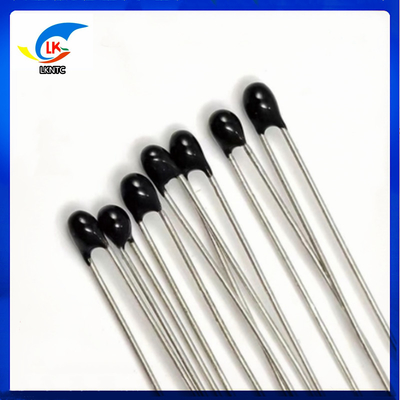

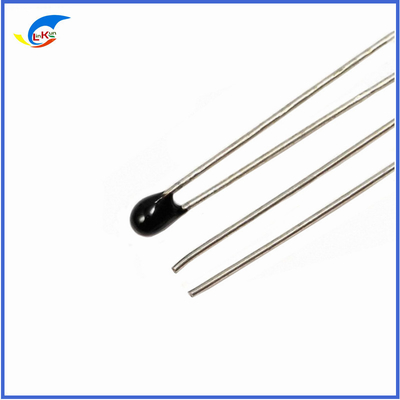

Special Features: Our MF52 temperature measuring thermistor, MF11 temperature compensated thermistor, MF55 film thermistor are manufactured with high-grade materials, ensuring excellent stability, accuracy and reliability.
We offer complete technical support and service for NTC type thermistors. Our staff of experienced engineers is available to provide assistance with product selection, installation and troubleshooting.
Our technical support team is available to answer questions and provide guidance on usage, care, and maintenance. We also offer professional installation services to ensure that your thermistors are properly installed and functioning properly.
We also provide warranty and repair services for any products that may be defective. We are committed to providing the highest quality service for all our customers.
NTC Type Thermistor Packaging and Shipping:
NTC Type Thermistor products are packaged in sturdy protecting boxes and shipped in sealed bags. The packages are then placed in heavy-duty cardboard boxes, which are then sealed with tape and securely labeled. A signature is required upon delivery.
Contact Person: Ms. Huang
Tel: 13423305709
