Product Details:
|
| Resistance Value: | 1K, 5K, 10K, 50K, 100K, 15K | Accracy: | ±1% |
|---|---|---|---|
| Usage: | Temperature Sensor | Temperature Range: | -40~120℃ |
| Theory: | Digital | Resistance Tolerance: | F±1%,G:±2%, H:±3%,J:±5%,K:±10% |
| Highlight: | 10K Surface Mount Temperature Sensor,3435 Surface Mount Temperature Sensor,NTC 100K 3950 |
||

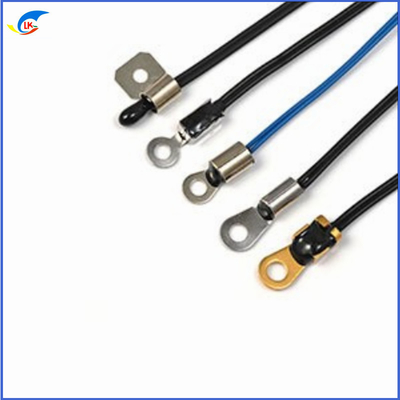

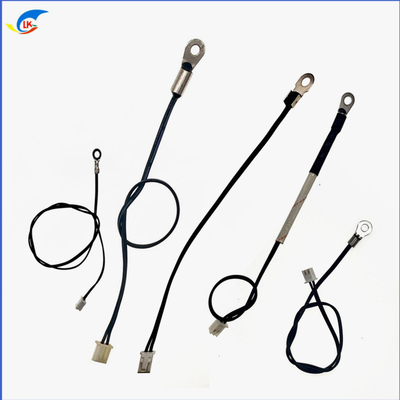

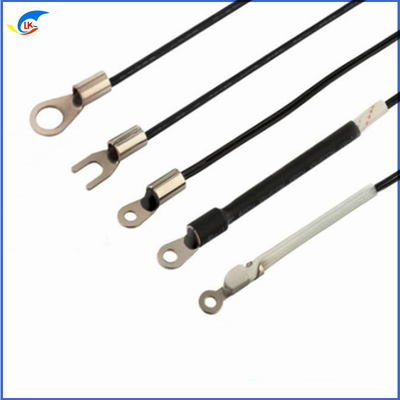

Energy Storage New Energy Vehicle Thermistor M3 M4 Wiring Ring 10K±1% B3435 Tail Connected To XH2.54
PRODUCT PARAMETERS
Product Usage:
Electric blankets, heated clothes, thermostatic coasters, bottle warmers, disinfection cabinets, car refrigerators, electric hot water faucets, refrigerators,
Freezers, water heaters, water dispensers, heaters, dishwashers, dryers, medium and low temperature drying ovens, and thermostatic ovens
Temperature measurement and control in other occasions.
Product Features:
1: This series of products is NTC thermistor temperature sensor
2:Wide resistance range: 1K9~200K9
3: Resistance and B values have high precision, fast response speed, and interchangeable resistance values.
4: Moisture-proof, good insulation, high reliability, small time constant and good insulation
5: Able to work stably for a long time with good consistency
6: Various shapes and packages can be provided according to the installation conditions used to facilitate user installation.
7: Provide a variety of wire types and connector types
Precautions:
Measuring: When measuring NTC thermistor, you must pay attention to the following matters:
●It cannot be measured in the air. The temperature difference in the air is large and the measurement is inaccurate, resulting in accuracy deviation.
●A high-precision constant temperature bath is used for measurement. After the NTC to be measured is placed in the constant temperature bath, it must wait for the temperature of the constant temperature bath.
After stabilization, measurement can be performed.
●The measurement voltage is as low as possible to reduce measurement errors caused by NTC self-heating.
●When measuring high temperature, use a thermometer to correct and check the temperature of the constant temperature chamber.
| Product parameters: | |
| NTC temperature sensor | |
| Commonly used resistance specifications: . | NTC 1K, 2K,5K,10K, 20K, 50K, 100K, 200K, 400K, 1000K等 |
| temperature range: | -20~120°C, -30~250°C, -40~350°C,或者应注意 |
| Resistance accuracy: | 0.5%, 1%,2%,3%,5% |
| Probe shape | Bullet, cylindrical, surface mount, spiral, epoxy sealed injection molded probes are available.Cylindrical probes, unencapsulated probes, flange probes, microprobes, clamp styles, various coating configurations and housing materials |
| Probe material | Nickel plated copper, brass, stainless steel, aluminum,ABS, PVC, PP, TPE, PTFE, PFA, silicone or suggestions |
| Wire | Teflon cable, PVC cable, silicone cable, TPE cable, XL-PE cable, or customized length as suggested by customer |
| Connector | TJC3 2.54, SMR, SMP, 5566,5264, PH, EH, XH, 557, etc. |
| Special requirements | High temperature resistance, waterproof, dustproof, anti-corrosion, etc. |
NTC temperature sensor is a kind of thermistor and probe. Its principle is: the resistance value drops rapidly as the temperature rises. It usually consists of 2 or 3 metal oxides, mixed in a fluid-like clay, and calcined in a high-temperature furnace to form a dense sintered ceramic. Actual size is very flexible, they can be as small as 0.010 inches or very small diameter. There is almost no limit to the maximum size, but usually under half an inch applies.
|
Certificates for Raw Material
|
All parts and processing is compliant with ROHS, CCC
|
|
Certificates for Wire Harness Material
|
UL/CSA,CE, VDE,SAA,CB,ISO9001 etc are avalable;
PA66 for connectors; copper or stainless steel for terminals
|
|
Length
|
As per customer’s request
|
|
Connector Type
|
Tyco, Delphi, Bosch, Deutsch, Yazaki, Sumitomo, FCI replacements
|
|
Service
|
Different series of customized CAD wire harness are available
|
|
Part No.
|
R25℃
(KΩ)
|
B(K)
25/50℃
|
Rated Power @25℃(mW)
|
Dissipation Factor(δ)
(mW/℃)
|
Thermal time
Constant (S)
|
|
TS502□3274A
|
5.0
|
3274
|
10-20
|
2-4
|
5-20
|
|
TS502□3435B
|
5.0
|
3435
|
10-20
|
2-4
|
5-20
|
|
TS502□3470A
|
5.0
|
3470
|
10-20
|
2-4
|
5-20
|
|
TS502□3950A
|
5.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS103□3274A
|
10.0
|
3274
|
10-20
|
2-4
|
5-20
|
|
TS103□3435B
|
10.0
|
3435
|
10-20
|
2-4
|
5-20
|
|
TS103□3470A
|
10.0
|
3470
|
10-20
|
2-4
|
5-20
|
|
TS103□3950A
|
10.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS103□4100A
|
10.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS153□3950A
|
15.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS153□4100A
|
15.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS203□3950A
|
20.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS203□4100A
|
20.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS223□4200A
|
22.0
|
4200
|
10-20
|
2-4
|
5-20
|
|
TS403□3928A
|
40.0
|
3928
|
10-20
|
2-4
|
5-20
|
|
TS503□3950A
|
50.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS503□4100A
|
50.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS104□3950A
|
100.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS104□4100A
|
100.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS104□4400A
|
100.0
|
4400
|
10-20
|
2-4
|
5-20
|
Working principle of temperature sensor
Using the NTC thermistor under a certain measurement power, the resistance value drops rapidly as the temperature rises. Utilizing this feature, the NTC thermistor can be used to determine the corresponding temperature by measuring its resistance value, so as to achieve the purpose of detecting and controlling the temperature.
